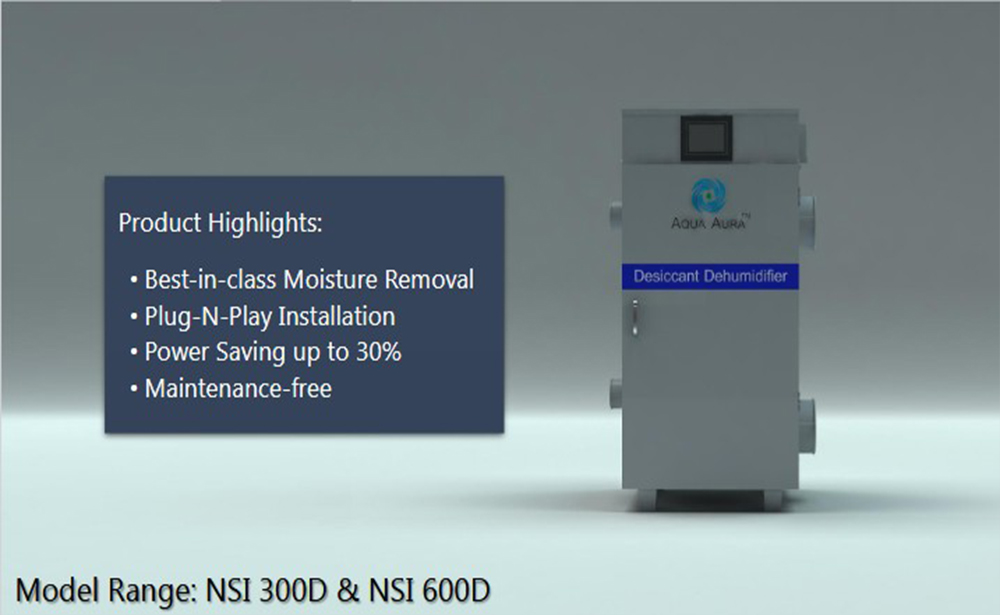

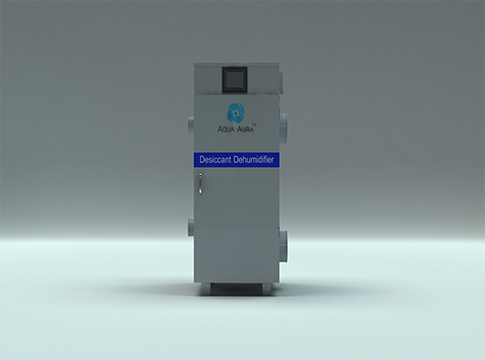

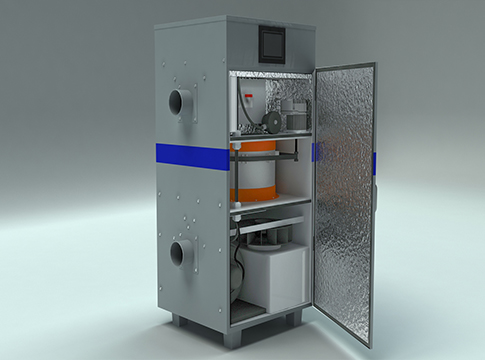

Compact Desiccant Dehumidifier

Dedicated desiccant air-supply units provide lowhumidity discharge conditions necessary to maintain a dry environment. It’s a simple solution to an old problem. The solid desiccant rotor absorbs moisture from process air. The moisture is taken out of the rotor by a second and separate reactivating airstream. This process enables the rotor to continually take moisture out of the airstream without interruption.

NSi Series units provide an excellent stand-alone solution when sensible heat gain is not a concern. To solve existing moisture problems NSi Series units can be added to existing conventional HVAC systems. The fully integrated dehumidifi er is complete with process and reactivation fi lters, fans and the complete control system for safe operation. Choose between direct gas fi red, steam, or electric actively heated reactivation.


Select Model No :

Nsi 300 D


Technical Features

  • Single Frame Design
  • GI material withCorrosion Resistance coating
  • In build RH &Temp Controller
  • Delaytime protection circuit
  • 30 % Energy efficient
  • Plug and Play Installation
  • Noiseless Operation
  • Easily Transportable with Caster wheels

Product description

  • Process air
    Nominal air flow (m3/h)_____300
    Total pressure (Pascal)______150
  • Reactivation air
    Nominal air flow (m3/h)_____100
    Total pressure (Pascal)_______50
  • Reactivation heater
    Heater power (kW)___________2
  • Total power consumption
    Total power (kW)___________2.25

Nsi 600 D


Technical Features

  • Single Frame Design
  • GI material withCorrosion Resistance coating
  • In build RH &Temp Controller
  • Delaytime protection circuit
  • 30 % Energy efficient
  • Plug and Play Installation
  • Noiseless Operation
  • Easily Transportable with Caster wheels

Product description

  • Process air
    Nominal air flow (m3/h)_____600
    Total pressure (Pascal)______250
  • Reactivation air
    Nominal air flow (m3/h)_____200
    Total pressure (Pascal)______180
  • Reactivation heater
    Heater power (kW)________4.5
  • Total power consumption
    Total power (kW)________5
